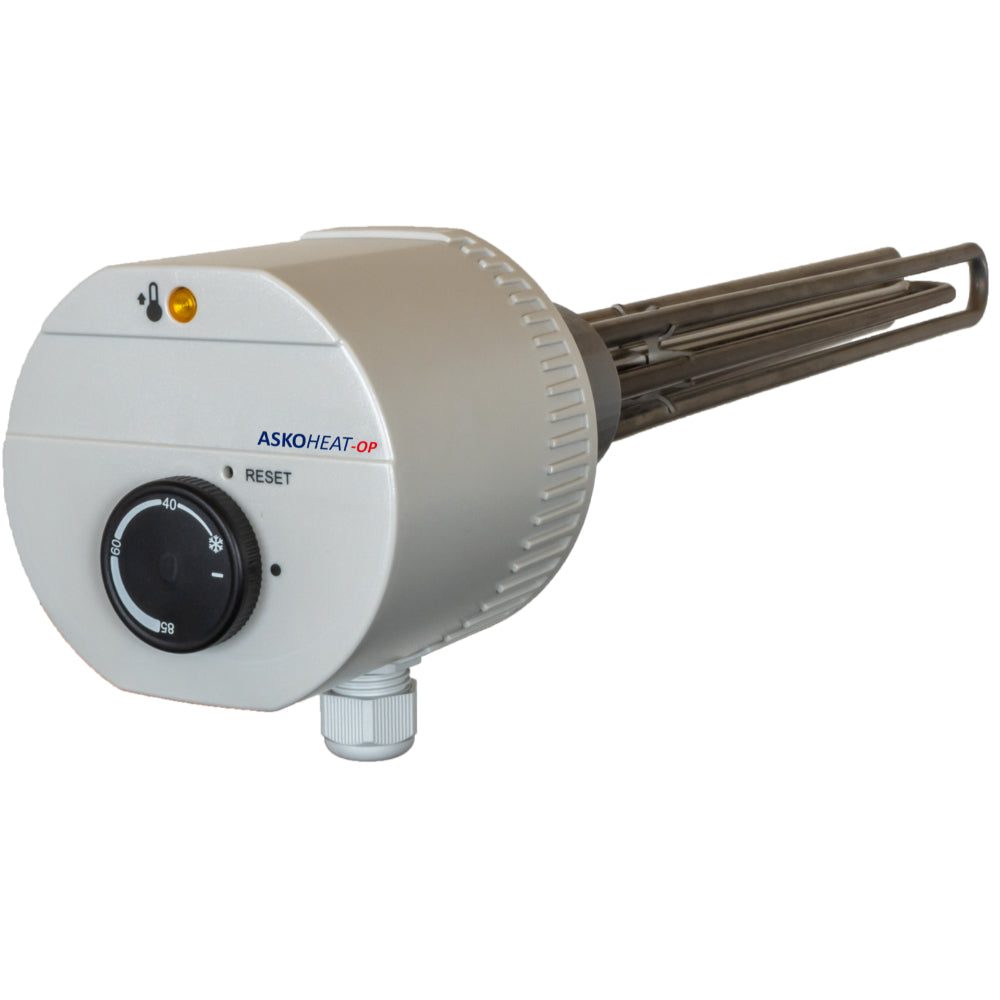

Askoma electric screw-in heater for PV 3.0kW

Price: €314,59 exkl. USt.

SKU: 012-5504

Taxes and shipping calculated at checkout

Prices plus shipping costs

Tax info read more

Questions to the product?

Available for pre-order

Delivery time: 7-10 working days

Quantity

WhatsApp-Support

Buyer protection ⭐⭐⭐⭐⭐

Product description

Description:

Heating of domestic and heating water in photovoltaic systems
To optimize the self-consumption of the PV system in conjunction with Fronius Ohmpilot
Stepless control via the Fronius Ohmpilot
Power control from 0 - 100 %
With temperature controller/limiter combination
Setting range: OFF/frost protection/28-85°C
Insulated construction for all storage materials (steel, stainless steel, enamelled)
Unheated zone: 150 mm
Protection class: IP41

Technical data:

Manufacturer Art-No.: 012-5504
Installation length [mm]: 400
Operating voltage [V]: 400
Brand: ASKOMA
Connection 1: External thread
Number of power levels: 99
Connection type: screw connection
Min. power [W]: 500
Connection dimension 1: 1 1/2 inch
Operating pressure [bar]: 10
Heating element material: stainless steel
Temperature setting [°C]: 28 - 85
Safety temperature limiter: ✓
Max. power [W]: 3,000

Askoma electric screw-in heater for PV 3.0kW

Price: €314,59 exkl. USt.

Technical specifications

Scope of delivery

data sheet

Heating element material: stainless steel
Max. power [W]: 520 × 660 × 220 mm
Temperature setting [°C]: 28 - 85

Askoma screw-in heater type AHIR-BI-OP 3.0kW, 400V, stepless, DN 40 (11/2")

Download PDF
