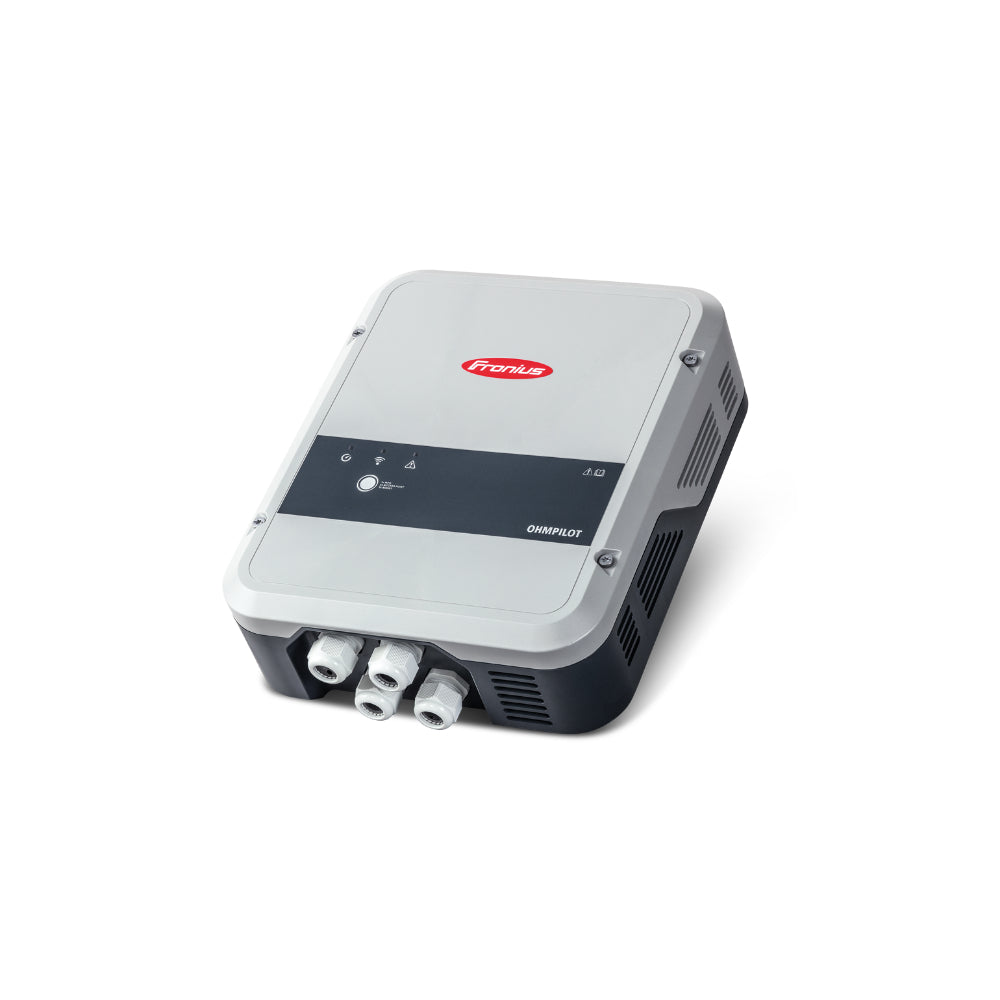

The Fronius Ohmpilot is a consumption controller that uses excess PV power to heat water. Thanks to the stepless control from 0 to 9 kW, the excess PV power can be used efficiently and passed on to consumers in the household. The Fronius Ohmpilot is primarily used to intelligently control heating elements for heating water in boilers and buffer tanks. Other areas of application include infrared heating or a towel dryer.
In a single-family home with average hot water consumption, the majority of the household's needs can be covered by solar power from April to October. The result: maximum self-consumption, reduction of the household's CO2 emissions and protection of the heating system in the summer months.
Please note: The Fronius Energy Meter is required for operation; you can find this in the accessories section.
Dimensions / width: 280 mm
Dimensions / height: 350 mm
Dimensions / depth: 110 mm
Weight: 3.9 kg
Type of power control: Pulse width modulation
Protection class: IP54
Mounting: Wall mounting
Ambient temperature range: 0 - 40 °C
